Wrapping Machine SW-Line Premium
The experts in wrapping - protecting and securing

Using tbs-pack's semi- and all-automatic pallet wrappers from the SW-line, your pallets are efficiently packaged and secured. Due to the high demand on transport security, the protection of pallets is indispensable.  Concerning this matter, our wrapping machines offer an ideal solution. Thanks to their modular design, the Nero wrapping machines can be easily and comfortably compiled with different application possibilities when needed.

Requests
Data Sheet

Technical Details:

  • pre-stretch function (the film can be automatically and constantly pre-stretched up to 300%, model SW-108 / SW-501)
  • clear control panel / touch panel (SW-108 / SW-501)
  • three preselectable wrapping programs: head and foot wrapping, cross wrapping, spiral wrapping or rainproof (depending on model)
  • infinitely adjustable lifting carriage speed  (SW-308 / SW-108 / SW-501)
  • infinitely adjustable rotary plate speed (depending on model)
  • rotary plate conveyance via chain or belt drive (SW-108 / SW-501)
  • automatic film separation from the film carriage (SW-108 / SW-501)
  • film reel quick-change system (depending on model)
  • electronically soft-regulated start-up and run-down (all models)
  • fix-stop of rotary plate in starting position (all models)
  • control panel flexibly turnable up to 90 degrees (SW-308 / SW-108 / SW-501)



Different Models:

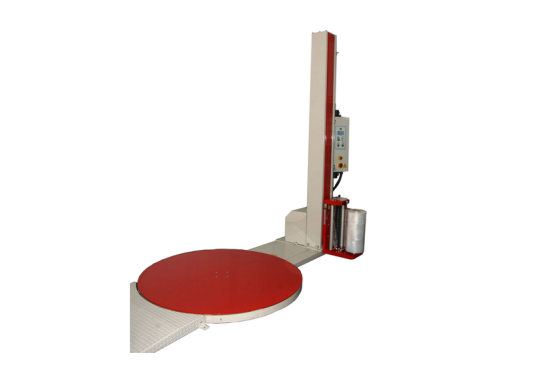

  • SW-308
    Model:SW-308
    Rotary plate diameter:Ø 1500 mm
    Rotary plate speed:up to 12 rotations / minute
    Maximum pallet height:2000 mm
    Maximum pallet weight:1650 kg
    Air pressure (dry air):No
    Supply voltage:230 V
    Connected load (maximum):0,8 kW
    Preselectable winding programs:3
    Control panel:analog
    Flexible control panel:Yes
    Automatic film fixation: No
    Automatic film separation: No
    Automatic film stripping:No
  • SW-108
    Model:SW-108
    Machine size (L x W x H):2080 x 1650 x 2145 mm
    Rotary plate diameter:Ø 1500 mm
    Rotary plate speed: up to 12 rotations / minute
    Maximum pallet height:2000 mm
    Maximum pallet weight:1650 kg
    Air pressure (dry air):No
    Supply voltage:230 V
    Connected load (maximum):0,8 kW
    Preselectable winding programs:4
    Control panel:analog
    Flexible control panel:Yes
    Automatic film fixation:No
    Automatic film separation:Yes
    Automatic film stripping: No

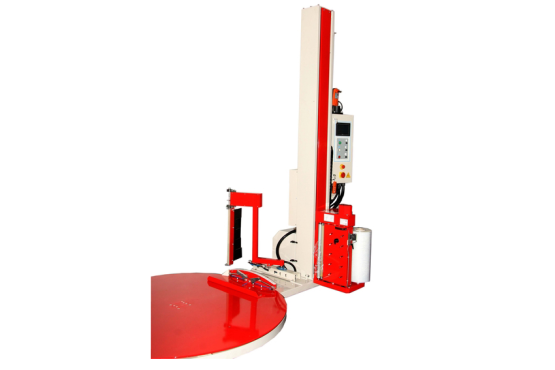

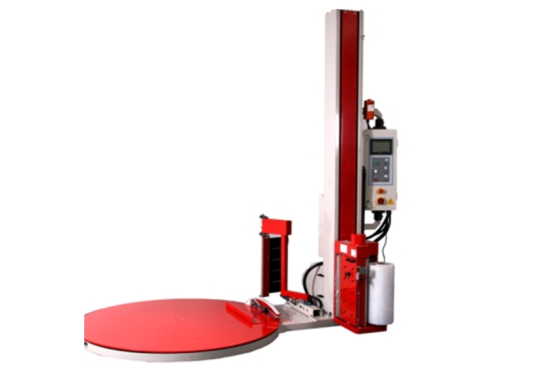

  • SW-501
    Model:SW-501
    Machine size (L x W x H):2600 x 1800 x 2550 mm
    Rotary plate diameter:Ø 1800 mm
    Rotary plate speed:up to 12 rotations / minute
    Maximum pallet height:2500 mm
    Maximum pallet weight:2000 kg
    Air pressure (dry air):6,0 bar
    Supply voltage:230 V
    Connected load (maximum):1,3 kW
    Preselectable winding programs:4
    Control panel:analog
    Flexible control panel:Yes
    Automatic film fixation:Yes
    Automatic film separation:Yes
    Automatic film stripping:Yes

Additional Options

  • Rotary plate: Option 1: Ø 1650 mm / max. 1650 kg pallet weight, Option 2: Ø 1800mm / max. 2000 kg pallet weight
  • Maximum pallet height: Option 1: 2000 mm, Option 2: 2500 mm, Option 3: 3000 mm

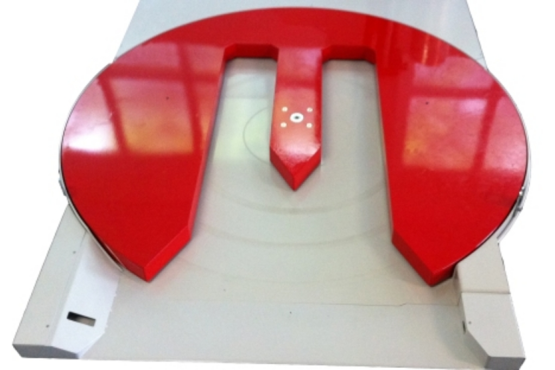

  • Pallet truck recess: rotary plate Ø 1650 mm / max. 1200 kg pallet weight, extremely space-saving in small working environments, as the ramp is omitted (only for SW-108)
  • Pallet downholder: For light and unstable products (not for SW-108)
  • Digital weighing system: For the direct calculation of pallet weight on the rotary plate (not for SW-108)
  • Product sensor for black films: For the detection of black / dark stretch films
  • Remote control: Comfortably starting the wrapping machine from the lift truck (SW-501)
  • Access ramp for pallet trucks: For all models available
  • Access ramp for lift trucks and battery-powered pallet trucks: For all models available


Convince yourself of our Wrapping Machines and make an appointment today with our showroom or with one of our reference customers at +492235 - 47048 - 0 or at info_at_tbs-pack.de.
