PACKAGINGS – EVERYTHING FROM ONE SOURCE

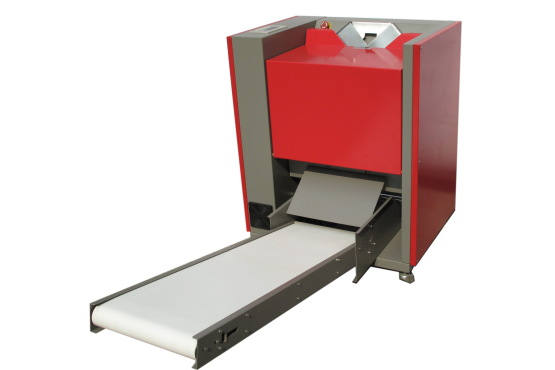

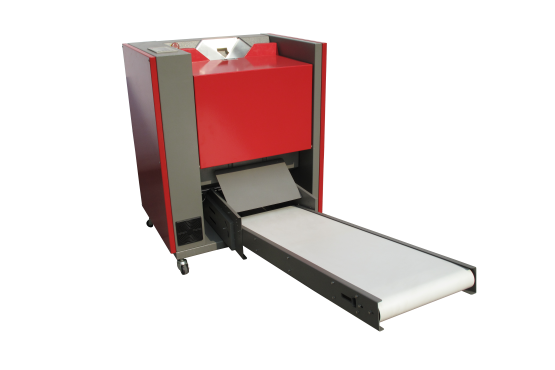

Magazine / Flyer Packing Machine
MSG-A4

The MSG-A4 packing machine offers a cost-effective packaging solution for magazines, catalogues, newspapers, thin books and many other products. By using film instead of paper as a protective packaging, the costs remain low and the product stays in the focus.


Requests
Data Sheet

Technical Details

  • simple handling due to the digital program selection
  • manual filling necessary
  • automatic length adjustment
  • impulse wire technology and cutting unit
  • suitable for dimensions DIN-long format to DIN B4
  • wheeled with parking brake, easy to move
  • film types: POF / PP / PE / PVC

MSG-A4 Packing Machine: Product Video

Data Sheet MSG-A4

Model:MSG-A4
Usable films (center folded):POF / PP
Maximum film thickness:30 μm
Maximum product dimension (L x B x H):295 x 215 x 20 mm
Maximum reel size (L x Ø):500x Ø 250 mm*
Machine size (L x B x H):830 x 800 x 1060mm
Connected load (maximum)1,0 kW
Supply voltage:230 V
Machine weight (approx.):145 kg
Sealing process:up to 25 pieces / minute**

 * It is not possible to combine all maximum dimensions

 ** The output quantities per minute are averages depending on film type, thickness, product dimension and machine handling.

Convince yourself of our packing machines and make an appointment today with our showroom or with one of our reference customers at +492235 - 47048 - 0 or at info_at_tbs-pack.de.

Optional Accessories

Polyolefin Fine Shrink Film

Shrink Tunnels
