PACKAGINGS – EVERYTHING FROM ONE SOURCE

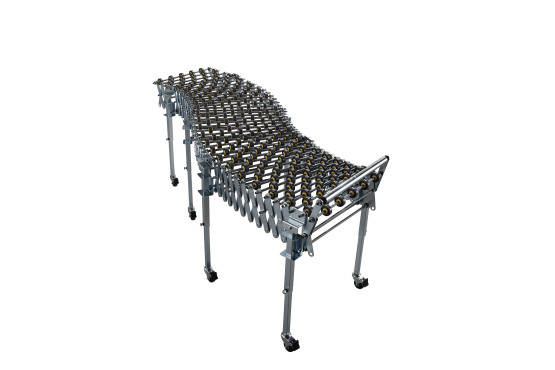

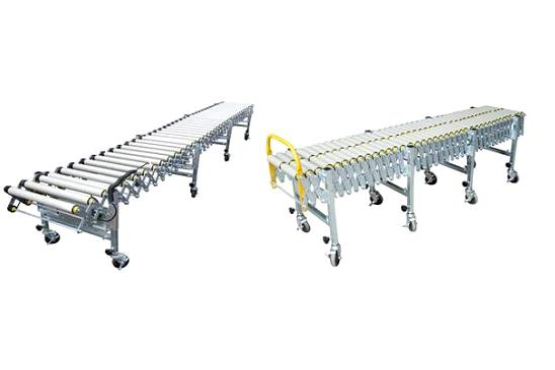

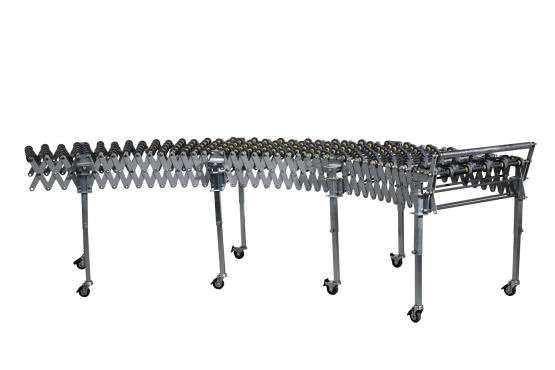

Roller conveyors
Manual conveyor belts

Heavy load roller conveyors and extendable wheel conveyors are indispensable in the field of conveyor technology. Simple, fast and uncomplicated - The various wheel conveyors make your packing arrangements more efficient.

Of course, we also gladly produce customized products upon request.

Technical Details:

  • adjustable height
  • variable curve shape in the conveyor belt guidance
  • infinitely variable division (center distance) stufenlose Teilung (Achsabstand)
  • curves up to 180° possible
  • extendable from 2000 to 4500 mm
  • runs by gravity due to minimal slope
  • wheeled with parking brake or with supporting feet

Different Models:

  • RLA-500/3
    Model:RLA-500/3
    Roll width:490 mm
    Work height:
    620 - 940 mm
    Table length:2000 - 4500 mm
    Total width:520 mm
    Tightest inner diameter (180° curve):999 mm
    Tightest outer diameter (180° curve):2000 mm
    Material:5 rolls per axis (aluminium)
    Other:extendable
  • RLK-500/3
    Model:RLK-500/3
    Roll width:490 mm
    Work height:
    620 - 940 mm
    Table length:2000 - 4500 mm
    Total width:620 mm
    Tightest inner diameter (180° curve):999 mm
    Tightest outer diameter (180° curve):2000 mm
    Material:5 rolls per axis (plastic)
    Other:extendable
  • RB-450-1000
    Model:RB-450-1000
    Roll width:450 mm
    Work height:
     720 mm
    Table length:1000 mm
    Total width:
    Tightest inner diameter (180° curve):-
    Tightest outer diameter (180° curve):-
    Material:PVC carrier rollers with ball bearing
    Other: heavy load roller conveyor
  • RB-1000-600
    Model:RB-1000-600
    Roll width:600 mm
    Work height:
    641 - 956 mm
    Table length:2000 - 4500 mm
    Total width:1000 mm
    Tightest inner diameter (180° curve):-
    Tightest outer diameter (180° curve):-
    Material:galvanized carrier rollers made out of steel
    Other:heavy load roller conveyor

Convince yourself of our Roller Conveyors and make an appointment today with our showroom or with one of our reference customers at +492235 - 47048 - 0 or at info_at_tbs-pack.de.

Additional Options:

Optional Accessories:

  • motor drive
  • alternative material (metal rolls, plastic rollers, full-width rollers, small rolls etc)
  • alternative roller structure
  • cardboard holding device
  • height-adjustable support feet
  • extensions

 Our recommendations on this machine:

  • Shrink tunnel

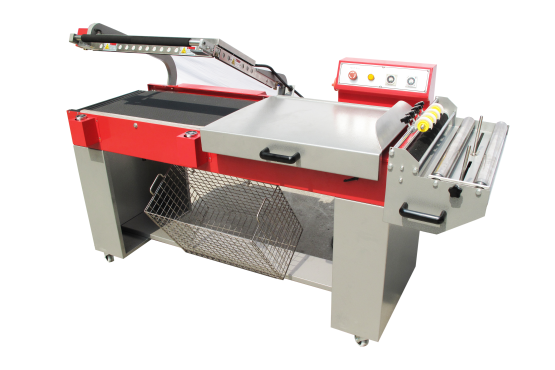

  • L-bar-sealer

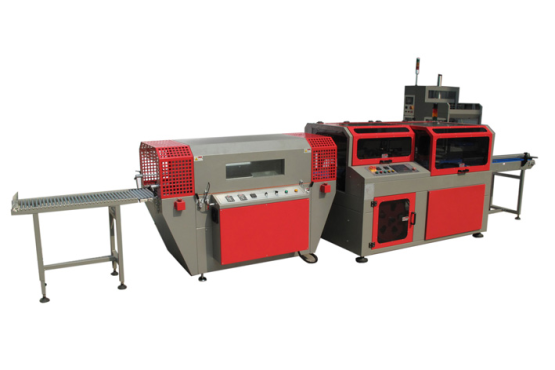

ST-Line (Shrink Tunnel)

Shrink Tunnel (TLA-Line)

STPE-Line (PE Shrink Tunnel)
