Static Filling and Capping Machines
The cost-effective entry-level alternative for the quick filling of prefabricated stand-up pouches

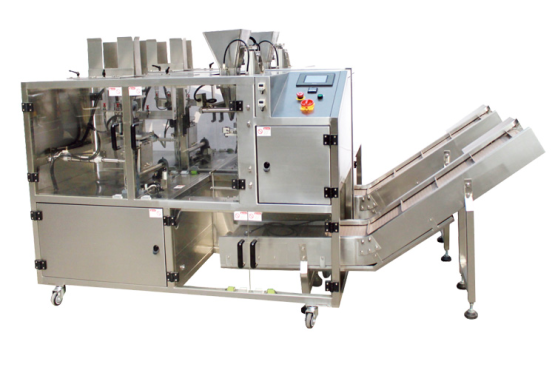

Our static filling and capping machine fills and caps prefabricated stand-up pouches (Doypack, pouch bag) with cycle times of up to 12 stand-up pouches per minute. Our bag capping machines can be extended optionally with linear or multiple-head scales. The compact design is space-saving and can be adjusted flexibly to different bag widths. The DPM-1BT line is the cost-effective entry-level alternative to complex linear filling or rotary machines. The stand-up pouches are directly transported via bag magazine and are filled and capped in the same machine.


General information on our filling and capping machines:

  • stainless steel edition for the food industry
  • can be used for powder, grains, liquids, pastes / dough

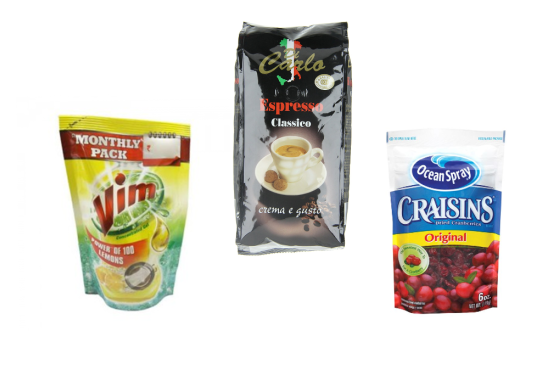

  • sectors: pet food, cosmetics (soap, shower gel), food (coffee, nuts)
  • simple touch-screen-control via color symbols (5,7“ Display)
  • pneumatic intake system and servomotor transport device

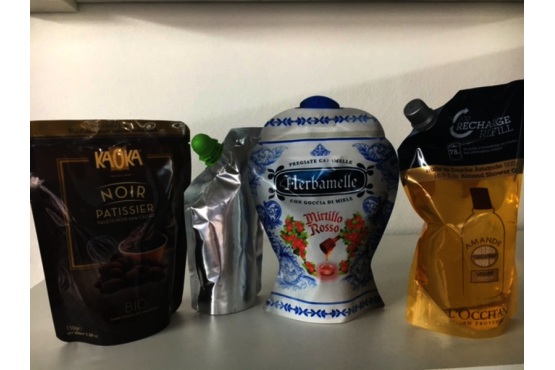

  • bag capping system for prefabricated stand-up pouches with or without pressure cap
  • high quality machine parts with long service life
  • individually storable product programs (20 pieces)

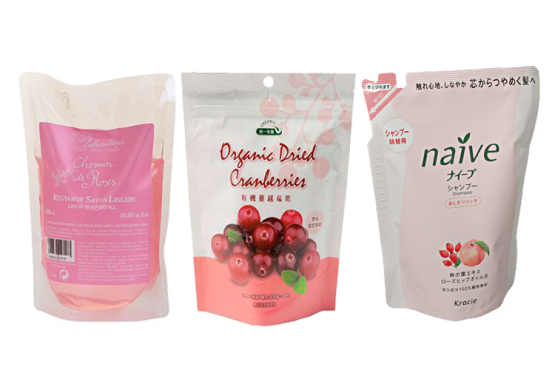

Today, the market and especially the pet food, cosmetic (shower gel, soaps) and food sector (cereals, dried fruits) are depending on stand-up pouches.

Our technical sales team is at your disposal for any further information regarding our Nero-Pack filling and capping machines.

Requests
Data Sheet

DPM-2BT in application: Filling of coffee beans into paper bags

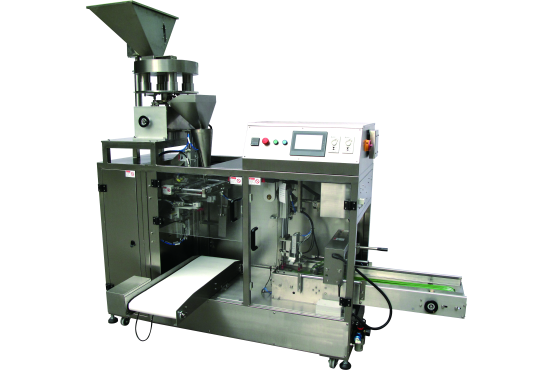

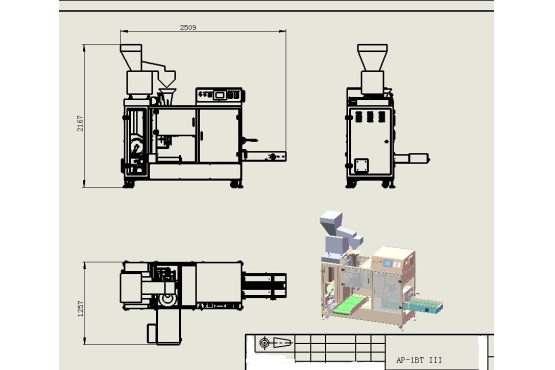

DPM-1BT filling and capping machine product video - deep frozen products with linear scale

DPM-1BT filling and capping machine: Product video - filling of soap (stand-up pouches)

DPM-2BT in application: Packaging of coffee beans

DPM-2BT in application: Packaging of cookies

Different Models:

  • DPM-1BT
    ModelDPM-1BT
    Usable bags:prefabricated stand-up pouches, flat bags
    Bag width:100 - 250 mm*
    Bag length:150 - 330 mm*
    Filling weight:max 2 kg
    Output quantity:up to 12 bags / min (depending on product)**
    Machine size (L x W x H):2185 mm x 740 mm x 1560 mm
    Supply voltage:230 V / 60Hz, 1-phase
    Connected load (maximum):2,0 kW
    Air pressure:300 l / min
  • DPM-1BT-XL
    ModelDPM-1BT-XL
    Usable bags:prefabricated stand-up pouches, flat bags
    Bag width:100 - 300 mm*
    Bag length:100 - 400 mm*
    Filling weight:max. 5 kg
    Output quantity:up to 15 bags / min (depending on product )**
    Machine size (L x W x H):2185 mm x 740 mm x 1560 mm
    Supply voltage:220 V / 50Hz, 1-phase
    Connected load (maximum):2,0 kW
    Air pressure:300 l / min
  • DPM-2BT
    ModelDPM-2BT
    Bag width:100 - 200 mm*
    Bag length:180 - 400 mm*
    Output quantity:8 to 15 bags / min (depending on product)**
    Machine size (L x W x H):1244 mm x 1376 mm x 2596 mm

* It is not possible to combine all maximum dimensions

** The output quantities per minute are averages depending on film type, thickness, product dimension and machine handling

Convince yourself of our Filling and Capping Machines and make an appointment today with our showroom or with one of our reference customers at +492235 - 47048 - 0 or at info_at_tbs-pack.de.

Practical Usage Possibilities at a glance:

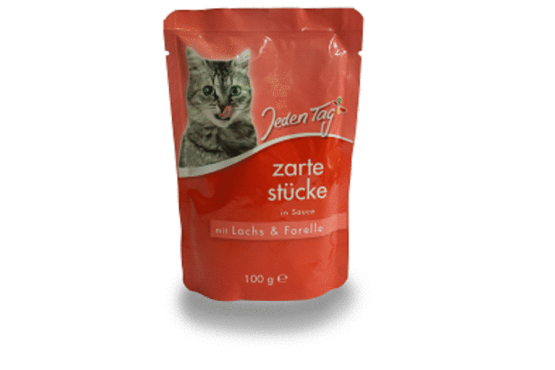

  • Pet food
  • Refill soap, shower gel
  • Cereals
  • Olives
  • Sausages

Optional Accessories:

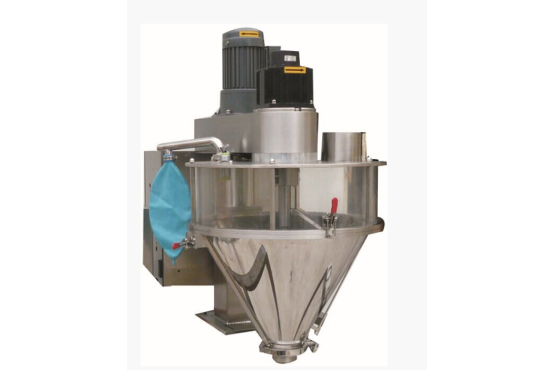

Filling Devices

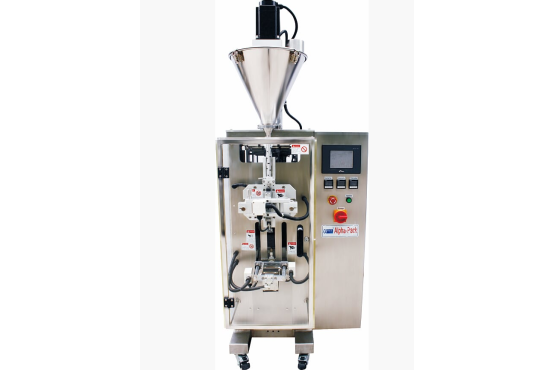

  • Volumetric Cup Filling Device
  • Multi-Head Combination Weigher

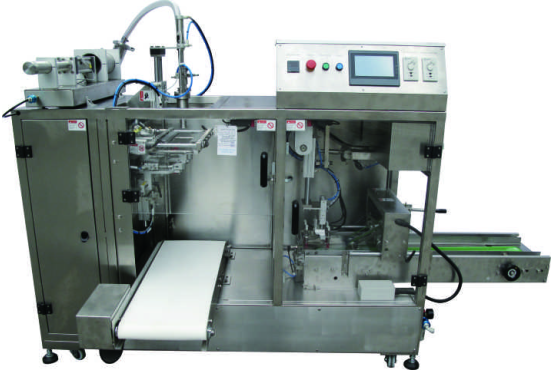

  • Hibar Pump Filler
  • Piston Filling Device
